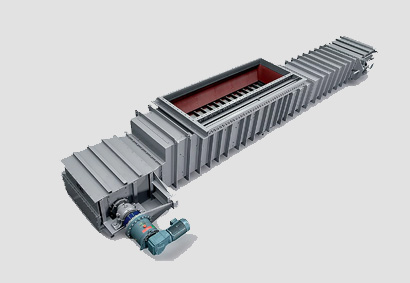

Wet Scraper Chain Conveyor Manufacturers in India
Synergy Global Engineering Pvt. Ltd. is trusted Wet Scraper Chain Conveyor Manufacturers, Suppliers and Exporters in India. We manufacture and supply Wet Scraper Chain Conveyors for industrial plants requiring continuous, controlled, and dependable removal of wet ash, scrap, and other challenging materials.
Our heavy-duty Wet Scraper Conveyors are manufactured using robust materials, accurately machined components, and carefully inspected assemblies to deliver dependable performance in demanding working conditions. We provide competitive pricing, customized dimensions, application-specific configurations, and reliable after-sales assistance. If you require high-quality scraper conveyors that support reduced maintenance and uninterrupted plant operation, our engineers can study your requirements, recommend an appropriate model, and complete delivery within the planned schedule.
With extensive application experience, we provide dependable conveying solutions for industries handling ash, metal scrap, sludge, slag, and other wet or abrasive materials. Our equipment is developed for projects where reliable operation, practical engineering, service life, and cost-effective performance are essential.
What Is a Wet Scraper Chain Conveyor and Why Is It Used for Industrial Material Handling?
A Wet Scraper Chain Conveyor is a mechanical conveying arrangement designed to move wet, sticky, abrasive, heavy, or difficult materials along a predetermined route. It consists of scraper flights mounted on a continuous chain, which drags the material through the conveyor trough. Wet Scraper Chain Conveyors are appropriate for demanding duties in power plants, foundries, metal-processing units, and waste-handling facilities where material must be transported continuously and under controlled conditions.
Working Principle of Wet Scraper Chain Conveyor
The Wet Scraper Chain Conveyor functions through an organized sequence of feeding, quenching, scraping, conveying, lifting, dewatering, and discharge. This operating method enables safe and controlled transportation of hot, wet, heavy, and abrasive process residues.
- Loading and Quenching: Hot ash or scrap enters the water-filled trough from the furnace, hopper, or collection point. The material is rapidly cooled, while the water also helps contain dust generated during the process.
- Chain Drive: A motor coupled with a gearbox rotates the drive sprockets, which continuously pull the scraper chain loop through the conveyor at a controlled operating speed.
- Scraping and Conveying: Heavy-duty steel flights attached to the chain travel close to the trough bottom and push settled material toward the conveying and discharge end.
- Lifting and Dewatering: The material moves upward through the inclined section, where excess water drains back into the trough while the cooled material continues toward discharge.
- Discharge: At the upper end, the cooled and partially dewatered material falls into a hopper, truck, chute, or downstream conveyor for further handling.
- Continuous Cycle: Following discharge, the chain returns toward the tail section while the water remains contained in the trough, allowing the Scraper Chain Conveyor System to operate continuously.
This operating arrangement is similar to a Chain Conveyor Wet Scraper configuration, while specific installations can also incorporate design characteristics associated with a Drag Chain Conveyor or Drag Chain Scraper Conveyor.
Types of Wet Scraper Chain Conveyor
As Wet Scraper Chain Conveyor Manufacturers in India, we manufacture application-specific systems according to material properties, conveying capacity, operating conditions, route configuration, and individual plant requirements.
Classification by Chain Type
- Forged Link Chain Conveyor: This arrangement uses drop-forged, high-strength alloy or stainless-steel links manufactured for demanding conveying duties. It can be selected for moderate capacities and applications involving high temperatures, heavy loads, and abrasive process materials.
- Calibrated Round Link Chain Conveyor: This configuration uses high-tensile round steel links designed to provide strength, flexibility, and dependable movement under severe operating conditions. The calibrated link construction is suitable for applications involving abrasive materials, elevated temperatures, and continuous conveying.
Classification by Strand Configuration
- Single-Strand Wet Scraper Conveyor: A single centrally positioned heavy-duty chain carries scraper flights and moves the material through the trough. This design is suitable for compact installations, moderate capacities, and shorter conveying distances where a single-chain arrangement is sufficient.
- Double-Strand (Twin-Chain) Wet Scraper Conveyor: Two parallel chains are joined using scraper bars to distribute the conveying load across the system. This arrangement is suitable for higher-capacity duties involving heavy ash, slag, clinker, and other demanding materials.
Classification by Material Path / Operation
- Lower-Strand Conveying System: The lower chain run travels along the bottom of the water-filled trough and uses scraper flights to move settled material continuously toward the discharge point. It is commonly used for heavy ash, slag, and similar residues that settle at the trough floor.
- Upper-Strand Carrying System: The upper chain run can transport floating or suspended material according to its density, settling behavior, and process flow characteristics. This configuration is useful where the material remains above the bottom of the conveying trough.
- Submerged Wet Scraper Conveyor: The conveying section operates below the water surface to collect, cool, and transport hot or wet process residues. A Submerged Chain Conveyor is especially suitable for ash-handling duties where controlled quenching, cooling, and continuous removal are required.
- Inclined Wet Scraper Conveyor: This type is designed to move wet or heavy material upward between different process elevations. Its scraper flights provide controlled transportation along inclined sections and help limit material rollback during operation.
Technical Specifications of Wet Scraper Chain Conveyor
As Wet Scraper Chain Conveyor Suppliers in India, we offer application-oriented equipment specifications covering conveying capacity, chain construction, operating temperature, dimensions, and other parameters necessary for reliable service.
| Specification | Typical Details |
|---|---|
| Conveyor Type | Heavy-duty wet scraper chain system for difficult material handling |
| Capacity | Up to 150 TPH, depending on material and conveyor design |
| Feed Temperature | Up to 1,200°C before rapid water quenching |
| Conveyor Length | Up to 65 m, based on plant layout |
| Chain Speed | 0.1–0.5 m/s for controlled material movement |
| Chain Pitch | 101.6–260 mm, selected according to load requirements |
| Chain Type | Forged-link or calibrated round-link chain |
| Chain Material | High-strength alloy steel for demanding service conditions |
| Chain Hardness | Up to 50–55 HRC for improved wear resistance |
| Breaking Load | Approximately 180–330 kN, depending on chain design |
| Trough Width | 300–1,500 mm, with customized sizes available |
| Trough Depth | Approximately 200–600 mm according to application |
| Drive Sprocket | C45 steel with hardened teeth for reliable operation |
| Chain Configuration | Single-strand or double-strand arrangement |
| Scraper Flights | Heavy-duty flights designed for continuous material dragging |
| Discharge Design | Inclined discharge for lifting material and draining excess water |
| Typical Applications | Bottom ash, clinker, slag, wet scrap, and abrasive residues |
Key Features of Wet Scraper Chain Conveyor
As Wet Scraper Chain Conveyor Exporters in India, we deliver robust conveying equipment using carefully selected components to support stable operation, controlled material movement, and extended equipment life.
- Heavy-Duty Construction: Strong structural components and wear-resistant scraper parts are selected to withstand continuous operation in demanding industrial environments.
- Water-Sealed Conveying: The water-filled trough helps cool hot material while providing a contained and controlled route for transportation.
- High-Strength Chain System: Durable chain assemblies are designed to manage heavy loads, abrasive materials, high temperatures, and repetitive conveying cycles.
- Customized Configuration: Conveyor length, trough dimensions, chain arrangement, scraper construction, inclination, and discharge design can be customized for individual plant requirements.
- Controlled Material Movement: A carefully selected chain speed enables steady material transportation while helping manage wear on important conveyor components.
Benefits of Wet Scraper Chain Conveyor
As Wet Scraper Chain Conveyor Manufacturers in India, we develop conveying equipment that combines controlled transportation, efficient cooling, dependable operation, and flexible integration for demanding industrial processes.
- Reliable Ash Handling: The system provides continuous and controlled transportation of bottom ash, clinker, slag, and similar industrial residues.
- Effective Hot Material Cooling: Water-based operation helps rapidly quench and cool high-temperature materials before they proceed to downstream handling equipment.
- Reduced Material Spillage: Scraper flights keep material within the trough and help maintain a cleaner, more controlled conveying route.
- Lower Wear during Operation: Suitable chain speeds and robust components help manage wear when abrasive materials are handled continuously.
- Flexible Process Integration: The Scraper Chain Conveyor System can be designed for different capacities, plant layouts, conveying distances, discharge points, and material characteristics.
Applications of Wet Scraper Chain Conveyor
As Wet Scraper Chain Conveyor Suppliers in India, we offer conveying solutions for industries requiring reliable transportation of wet, abrasive, heavy, hot, and difficult-to-handle materials.
- Power Plants: Used for continuous transportation of boiler bottom ash, clinker, and other combustion residues from collection points.
- Boiler Ash Handling: A Bottom Ash Scraper Conveyor provides controlled movement of settled ash toward downstream collection, dewatering, and disposal systems.
- Metal Processing: Suitable for handling wet metal scrap, chips, scale, and abrasive residues produced during industrial metal-processing operations.
- Foundries: Helps transport hot, heavy, and abrasive foundry waste away from production areas and material collection zones.
- Steel and Iron Plants: Supports the movement of slag, scale, ash, and other challenging industrial residues under severe operating conditions.
- Waste Processing: Used for transporting wet, sticky, abrasive, and heavy waste where standard conveying equipment may not be appropriate.
- Industrial Ash Management: A Wet Ash Handling Conveyor can transfer quenched ash between collection, cooling, dewatering, and disposal stages.
- High-Temperature Residue Handling: Suitable for processes requiring controlled cooling and transportation of hot industrial byproducts.
For submerged material-handling applications, equipment can also be configured as Chain Conveyors Submerged Wet Scraper Conveyor systems according to the required process arrangement.
Why Choose Us?
- Engineering Experience You Can Rely On We combine practical engineering expertise with proven manufacturing capabilities to develop scraper conveyors designed for challenging industrial material-handling environments.
- Designs Built Around Your Process Every plant has different material, capacity, layout, temperature, and operating conditions. We develop conveyor configurations specifically around the individual requirements of each application.
- Reliable Equipment at Practical Costs We use appropriate materials, durable construction, efficient production methods, and application-focused engineering to deliver dependable conveying equipment at competitive prices.
Synergy Global Engineering Pvt. Ltd. is prominent Wet Scraper Chain Conveyor Manufacturers, Suppliers and Exporters in India. We manufacture dependable conveying systems for handling wet, abrasive, heavy, and high-temperature materials across demanding industrial applications. Our focus on robust engineering, quality-oriented manufacturing, customized configurations, and competitive pricing helps industries achieve controlled material movement and reliable process operation. Contact our team for additional information and to discuss your specific conveyor requirement.
FAQ’s
Wet Scraper Chain Conveyors are suitable for a range of difficult materials, including bottom ash, clinker, slag, wet metal scrap, sludge, scale, and other abrasive residues. The conveyor design is selected after considering material weight, moisture, temperature, particle size, and flow behavior.
The water-filled trough provides a controlled environment for handling hot material. It helps quench and cool incoming residues, limits dust during material entry, and allows the conveyed material to move through a contained path before reaching the discharge section.
Depending on operating conditions, the system can use forged-link or calibrated round-link chains. Chain size, material, pitch, breaking load, and construction are selected according to conveying capacity, material characteristics, temperature, and expected service conditions.
Yes. An inclined arrangement can be incorporated when material must be lifted to a higher process level. Scraper flights help maintain controlled movement along the inclined section, while the conveyor geometry can also support drainage of excess water before discharge.
A Submerged Scraper Conveyor is designed to collect, cool, and transport hot or wet material while the conveying section remains below the water level. This arrangement is particularly useful for applications where hot ash requires rapid quenching before further transportation.
Wet metal scrap conveyors are selected according to scrap weight, dimensions, moisture, temperature, abrasiveness, required capacity, conveying distance, and discharge arrangement. Chain strength, scraper design, trough dimensions, and wear protection are then determined accordingly.
Yes. A Submerged Chain Conveyor can be engineered according to required capacity, trough dimensions, chain configuration, conveying length, operating temperature, inclination, discharge position, and plant layout. Customization allows the conveyor to integrate with existing process equipment.
A Bottom Ash Scraper Conveyor is specifically arranged for the continuous removal and transportation of settled bottom ash and similar combustion residues. Its chain, scraper flights, trough, drive system, and discharge arrangement are selected according to ash characteristics and plant operating conditions.
